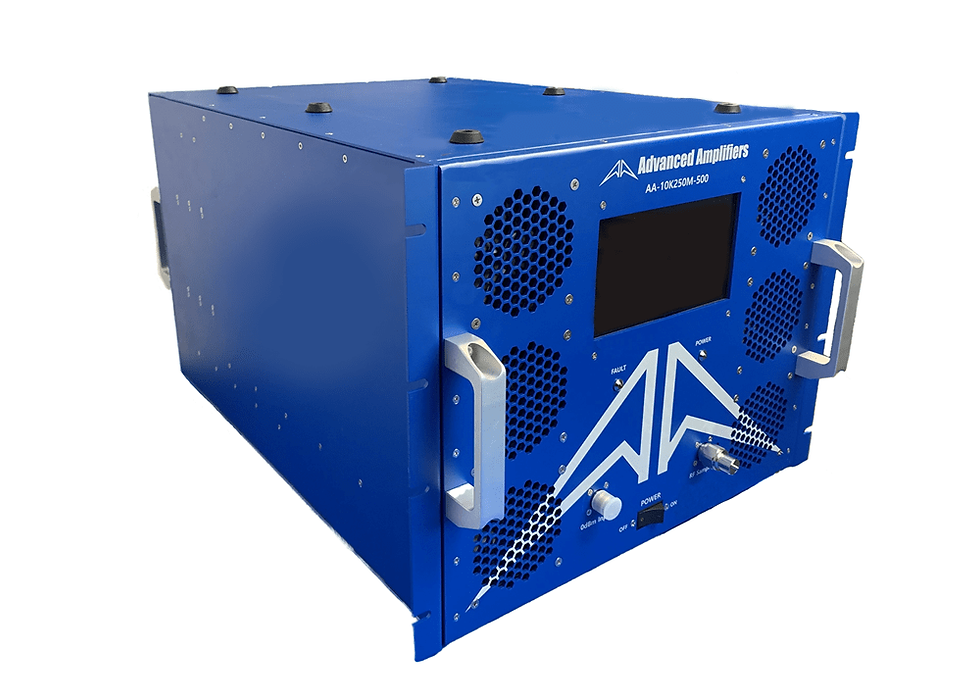

AA-10K250M-500 Solid State RF Amplifier

Designed for EMI/RFI, lab, CW/Pulse, and all communication applications
Small form factor, rack mounted system Class A/AB Linear design
High Power Advanced technology devices
Instantaneous ultra-wide bandwidth
Built-in protection circuits, with extensive monitoring
Local LCD & remote flexible interfaces
High efficiency, with unprecedented reliability and ruggedness

Overview
Electrical Specifications
Mechanical Specifications

The Advanced Amplifier AA-10K250M-500 Solid State RF Amplifier is designed for EMI/RFI, lab, CW/Pulse, and other communication applications. The unit has high efficiency and is equipped with protection circuits and remote flexible interfaces. The AA-10K250M-500 model has an operating frequency range of 10 kHz to 250 MHz and power gain of 57 dB minimum. The power output has a 500 W minimum at Psat and 200 W typical at P1dB.
