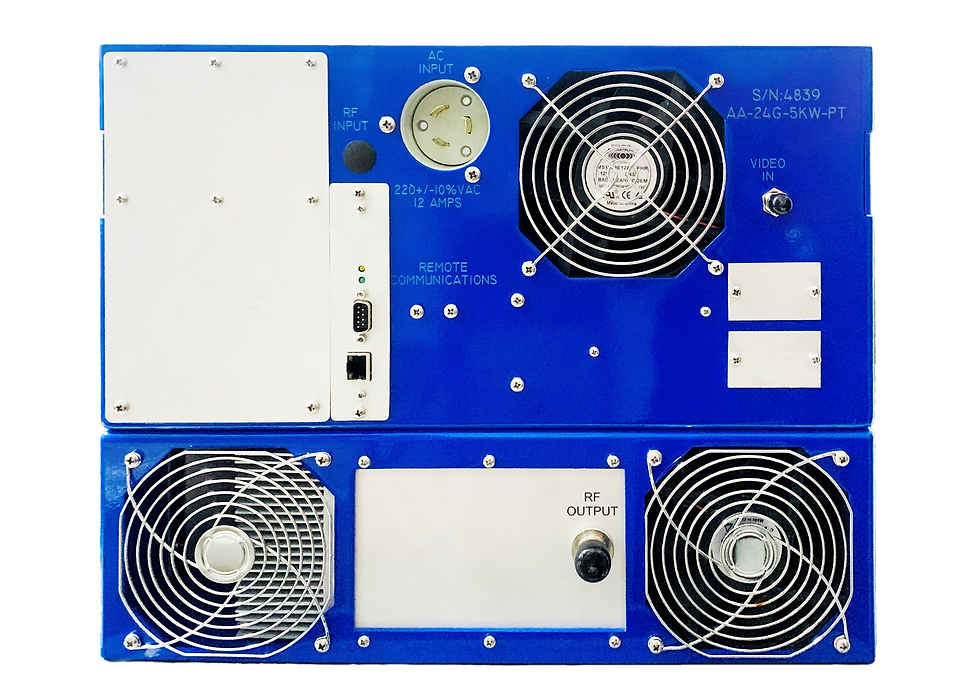

AA-24G-5KW-PT Pulsed Amplifier

Small form factor 5U chassis
Modern TWT design with internal monitoring
Instantaneous E and F-Band octave bandwidth
Suitable for linear high peak pulse applications
Built-in protection circuits
Versatile interface options
High reliability and ruggedness

Overview
RF & Modulation Specifications
Mechanical Specifications

The Advanced Amplifier AA-24G-5KW-PT Pulsed Amplifier is a 5000-watt TWT high-power amplifier, offering instantaneous E and F-band octave bandwidth and small form factor 5U chassis. The system has a frequency range of 2.0 to 4.0 GHz, ideal for linear high-peak pulse applications. With built-in protection circuits and a versatile interface design, the Advanced Amplifier AA-24G-5KW-PT is reliable and easy to operate.
